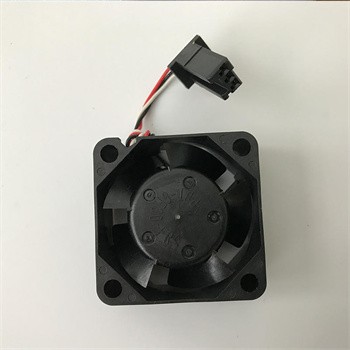

A90L-0001-0510 NMB-MAT 1608KL-05W-B39 Fanuc Fan Motor

Fanuc fan motor replacement for Fanuc Servo amplifier unit for circulating the inside air type Fanuc Alpha SVMi Servo amplifiers (Fanuc SVM1-20i, Fanuc SVM1-40i, Fanuc SVM1-80i, Fanuc SVM1-160i and also multi axis SVMi 2/3 axes) also the Fanuc Alpha spindle drives (Fanuc SPM-2.2i, Fanuc SPM-5.5i, Fanuc SPM-11i, Fanuc SPM-5.5HVi and any other compatible).

Fanuc Fan motor A90L-0001-0510 for circulating the inside air of Fanuc Alpha i modules compatible. Install the new fan. Make sure the label/sticker is facing up (towards the grills on the Fanuc yellow cover).

Fanuc fan also identified as the following manufacturer references : NMB-MAT 1608KL-05W-B39, A06B-6110-C605

Dimensions and size of this Fan NMB-MAT 1608KL-05W-B39 (A90L-0001-0510) : 40x40x20mm

Voltage : 24V DC, 0.08A~

Connector : 3-Pos black female connector plug

Fanuc cooling Fan type FANUC A90L-0001-0510 for circulating the inside air of a Fanuc SVM Servo amplifier module i series (Inside the yellow plastic case), in order to cool Fanuc Power PCBs inside the Servo module.
